SOLAR KIT 2 - Independent Domestic Off-grid
Household appliances, pumps and lighting
Solar Tracker option + 30% Power  *  DC Fridge/Freezer option only 1 PV module needed


 240 - 450 Watts: peak 1,600 KWatt Hours daily
This Solar Kit is a powerful versatile modular system capable of supplying 220 AC mains electricity for all normal appliances such as washing machine, food processor, vacuum cleaner, electric drills, Tv/DVD, laptops and lighting.

DIY capable? This kit is easily self-installed - full connection diagram and instructions are provided.



Polycrystalline PV modules are
guaranteed up to 25 years

Tracker Option adds up to 30% more
solar generated power (= +1 PV)


We will help you match your required use profile
and supply a system to meet your expected energy needs.

We specialise in supplying and installing systems that are optimised to meet your
specific needs that are economic, reliable with latest quality technology.
Download our Renewable Energy Demand Calculator (uses Ms Excel)
Best value solar kit for DIY installers.
Supplied to UK + Europe mainland
  Kit Components

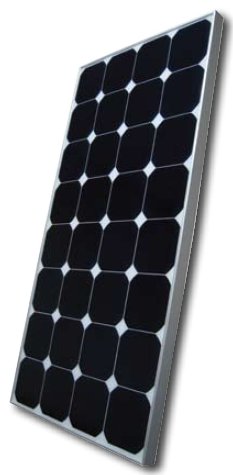

LORENTZ PV modules offer a conversion efficiency of 17-20%. These monocrystalline silicon solar cells produce a high voltage per cell - 32 cells are sufficient to provide the same voltage as traditional 36-cell modules. As a result, LORENTZ modules are lighter and smaller.

5.1 Peak Amp output, 90 Watts.  20 Years 80% power output guarantee
Download Lorentz_Spec_Sheet.pdf

The BP 380 photovoltaic module is designed to provide value and performance with time-tested multicrystalline silicon solar cells and 80 watts of nominal maximum power.  With 36 enhanced-efficiency cells it charges 12V batteries efficiently in virtually any climate.

4.55 Peak Amp output, 80 Watts.  25 Years 80% power output guarantee
Download BP380_Spec_Sheet.pdf

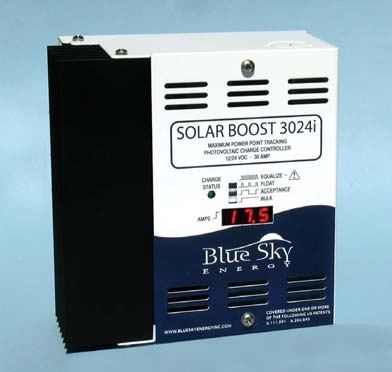

Maximum Power Point Tracking technology allows the Solar Boost 3024iL to increase charge current up to 30% or more compared to conventional charge controllers. 30% is max under ideal conditions, typical boost is 10% to 20% with an MPPT controller.  The 3024iL's advanced fully automatic 3-stage charge control system will properly charge flooded lead-acid, AGM and GEL batteries resulting in improved battery performance with less maintenance. The dual 30/40 amp rating will deliver at up to 40 amps in 12 volt systems.

Download Solar Boost Data Sheet.pdf


Studer Swiss PSW Inverter

A Pure Sinewave 220 Volt mains power Inverter and Battery Charger option provides an uninterrupted power supply as well as ensuring that your batteries are always well maintained from a back-up Generator if used.  Studer Swiss sinewave inverters are powerful and reliable enabling any 230Vac equipment (up to the nominal power of the selected inverter) to be operated from a battery. They deliver high output rates with top efficiency whilst having a low standby power draw. Simply connect the Inverter to your battery and to your consumer/fuse unit to run your appliances.

Download Studer AJ Series Spec  Download Compact Series Spec (+Battery Charger)



Correct sizing of your battery store for long-life expectancy is essential.  We supply a range of deep-cycle low-maintenance batteries with up to 7 year warranties and 12 year life expectancy matched to your use requirement.

http://www.rolls-europe.com/solar.html
Classic Solar Technical brochure.pdf

Supplied with this Solar Kit are cable, terminals, battery connectors and fused DC disconnect. Other items such as Lightning Arrestor and PV mounting systems are available.

PRICE GUIDE:

Solar Kit 2
Standard Domestic













Solar Kit 2
Full Domestic



Solar PV

BP 380

x 3

Lorentz 90

x 5

Solar Controller

Steca Pro 20 Amp

x 1

BlueSky 30 Amp 12/24

x 1

Inverter

Studer AJ 1000 Watt

x 1

Studer XPC 1400 Watt

x 1

Battery Store

Rolls S 460 Ah 6V

x 2

Rolls S 530 Ah 6V

x 2











Total cost (ex-Vat + delivery)       ==>              £2,329

          ==>              £4,350



EtaTrack400 Solar Tracker Option:


Download EtaTrack400.pdf

  • 1-axis, active solar tracker

  • total module surface max. 4 m2, approx. 500 Wp

  • maintenance-free

  • high reliability and life expectancy

  • no failure prone light sensor

  • low power consumption, approx. 1.25 kWh per year

  • no unnecessary tracking movements

  • designed to withstand wind speeds up to 120 km/h

  • cost-efficient tracking system

  • 2 years manufacturer's warranty against defects in material and workmanship


Price: £649 + Vat
